RHD

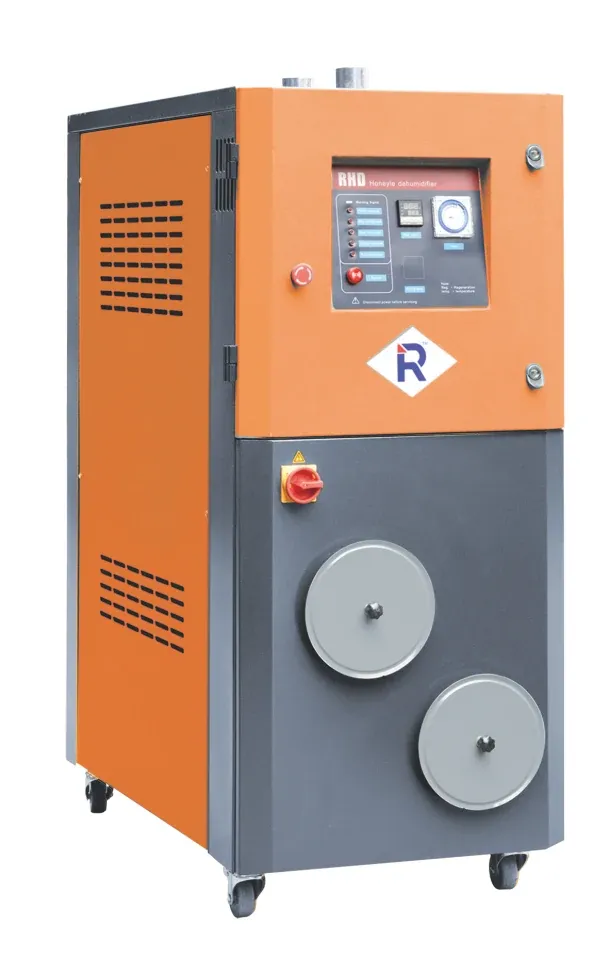

Honeycomb rotor dehumidifier for resin drying

Dehumidified process air supplied to a compatible resin-drying hopper.

Request a quote WhatsApp

Ask for the specification sheet for your configuration.

Honeycomb rotor dehumidifier for resin drying

Applications

  • Hygroscopic resin preparation
  • Dehumidified-air supply to drying hoppers

Pair the air system with the hopper

The RHD honeycomb rotor dehumidifier provides dehumidified air for a resin-drying arrangement. RHONG materials describe its combination with RDM drying hoppers for hygroscopic engineering plastics. The dehumidifier and hopper have separate roles: the air system removes moisture from the circulating air, while material is held in the drying hopper. The rotating honeycomb passes through process-air, regeneration and cooling zones as the air system operates.

Follow the resin drying instruction

Provide the resin grade and its supplier's required drying temperature, time and air conditions. Add the hourly consumption and the proposed hopper arrangement. A low dew-point claim alone does not establish the residual moisture in the resin. The selected air system and the material's time in the hopper must relate to the production demand.

Show the air and cooling connections

Draw the process-air and return-air route between dehumidifier and hopper. Identify the cooling-water provision required by the proposed configuration and the location of filters and air connections. Ask which temperature controls, dew-point measurement and conveying components are included or optional.

Make cleaning part of the arrangement

Leave access for filter inspection and explain how materials or colors change in production. A standalone RHD should be quoted with its compatible hopper and connection scope. The RDC combined dryer is a separate arrangement that also incorporates material conveying.

Send your equipment requirements through the inquiry form.

RHD catalogue dry-air flow

Published catalogue references for the named dehumidifier models. Confirm the supplied model and operating conditions in your quotation.

RHD named catalogue models
ModelCatalogue dry-air flow (m³/h)
RHD-3030
RHD-5050
RHD-8080
RHD-120120
RHD-150150
RHD-200200
RHD-300300
RHD-400400
RHD-500500
RHD-700700

Dry-air flow is an air-volume reference, not resin throughput in kg/h or a guarantee of resin moisture content or dew point. Select the dehumidifier and compatible hopper against the resin supplier’s drying conditions and production demand.

Questions about this equipment

Is a dew-point meter standard on the RHD dehumidifier?

The published RHD catalogue lists the dew-point meter as an option. If process-air dew point needs to be monitored, specify the meter in the equipment scope.
