RDM

Hot-air hopper dryer

Hopper-based hot-air drying for plastic pellets before processing.

Request a quote WhatsApp

Ask for the specification sheet for your configuration.

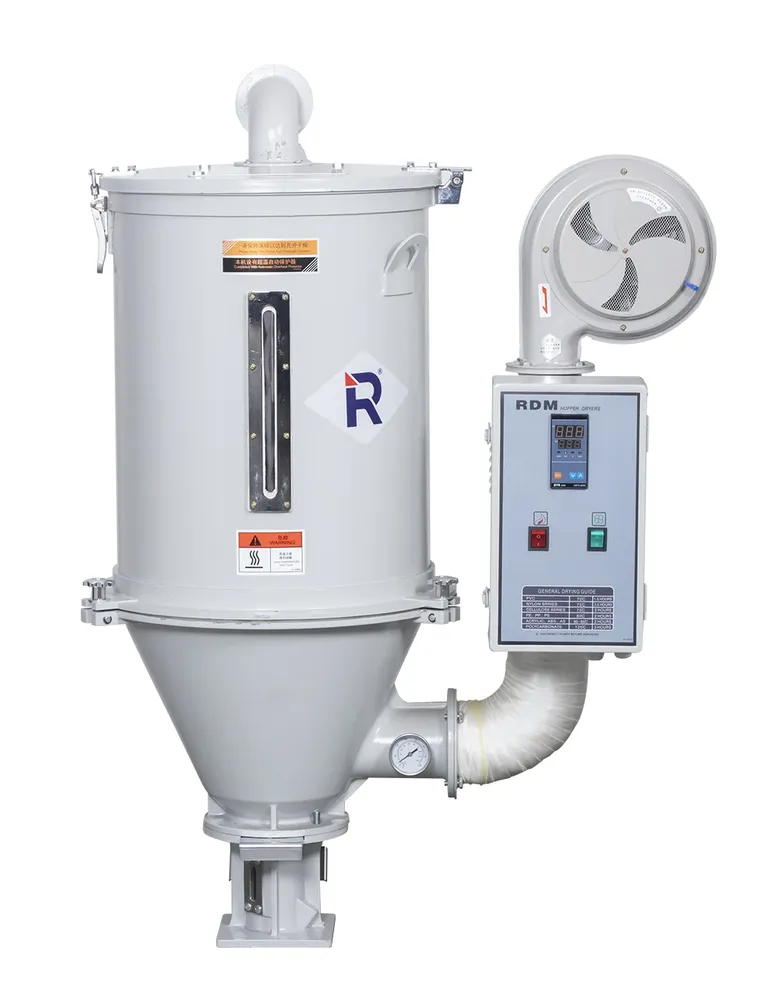

RDM hopper dryer

Applications

  • Plastic pellet drying
  • Resin preparation before processing
  • Machine-side drying arrangements

Drying material in a hopper

The RDM is a hopper dryer for preparing plastic pellets before processing. Review the material supplier's drying instructions with the actual resin grade and your production consumption.

Hot-air hopper drying and dehumidifying drying are different arrangements. Where the material instructions require dehumidified air, review the RDC range for that requirement. A hopper dryer should not be selected on the assumption that one arrangement suits every plastic.

Work out the hopper position

Show whether drying will take place beside the processing machine or in another material-preparation area. The feed source, receiving arrangement and material route help define the proposed installation.

Include hourly consumption, drying time specified by the resin supplier and operating hours. These inputs help review the hopper arrangement without confusing material held in the hopper with hourly production demand.

Catalogue model data

Reference data from RHONG’s published catalogue for the named variants below. Confirm the current specification and options in your quotation.

RDM catalogue reference
ModelHeater power (kW)Nominal material charge (kg)
RDM-121.512
RDM-25325
RDM-50450
RDM-1005.5100
RDM-20012200
RDM-60022600

Nominal charge is the mass held, not processing or drying throughput in kg/h. Actual charge varies with plastic bulk density. Resin grade, supplier-recommended temperature and time, and hourly demand guide selection; hot-air drying is not dehumidification.

Prepare the material and site details

A resin grade or data sheet, supplier drying instructions and a simple layout are useful starting points. Add the electrical supply and identify any existing loading equipment that the installation will use.

See the resin drying guide for the full inquiry checklist.

Compare hopper configurations and installation

The hopper sizing guide explains how to use drying time and hourly demand when reviewing capacity.

Published RDM configuration references
ConfigurationWhat to compare
RDM-PControl: P.I.D configuration. P.I.D control does not add a dehumidifier or material loader to the drying scope.
RDM-UInsulation: double-wall hopper construction.
RDM-200LInstallation: floor-stand arrangement.
RDM-AInstallation: floor-stand arrangement.

The standard RDM table above applies to its named models; it does not establish specifications for these references. Identify the complete model, controller, temperature protection, installation and required working height in the quotation.

Questions about this equipment

Can an RDM hopper dryer be supplied with a timer?

The published RDM range lists a 24-hour timer as an option. Specify that option when selecting the control package; a timer setting does not establish the drying time required by the resin grade.
