RDC

Dehumidifying resin dryer

Dehumidification, drying and material conveying in an RDC resin-preparation arrangement.

Request a quote WhatsApp

Ask for the specification sheet for your configuration.

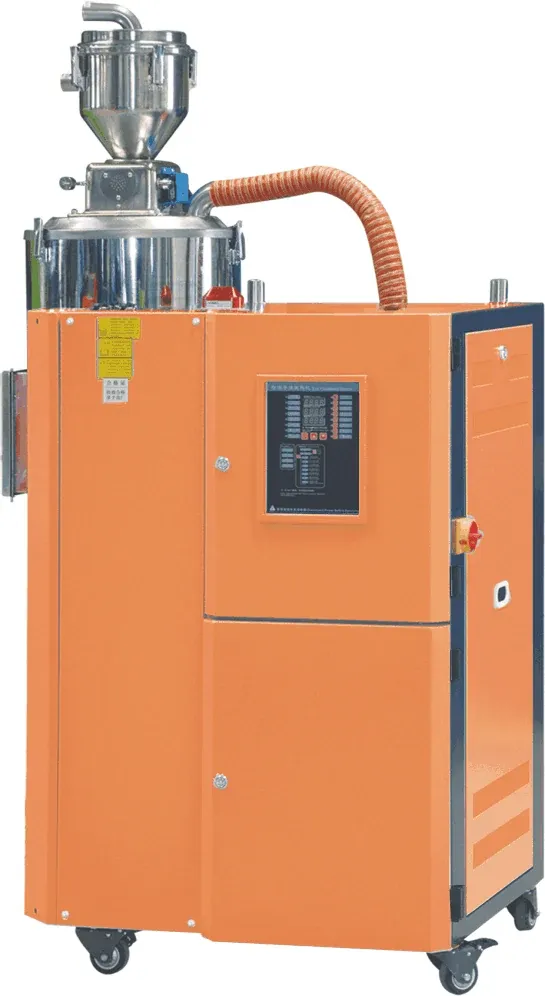

RDC dehumidifying dryer

Applications

  • Resin preparation before processing
  • Drying for moisture-sensitive materials
  • Molding and extrusion feed preparation

Match the drying conditions to the grade

The RDC range combines drying and dehumidification for plastics processing. The resin grade and its supplier's drying instructions define the starting requirement: temperature, time and any moisture or drying-air conditions specified for that material.

Send the grade designation or material data sheet. A general polymer name does not establish the drying conditions for every grade, blend or proportion of regrind.

Size the arrangement around material demand

Hourly resin consumption and the required drying time are relevant when reviewing the drying arrangement. Include operating hours, the number of processing machines and how material reaches each machine.

Where a dew-point value is proposed, check its operating and measurement conditions and whether it depends on an option. It should not be treated as an unconditional value for every configuration.

Catalogue model data

Reference data from RHONG’s published catalogue for the named variants below. Confirm the current specification and options in your quotation.

RDC Chinese catalogue reference
ModelProcess heater power (kW)
RDC-28L/30H3
RDC-38L/30H4
RDC-38L/50H4

Only process heater power is shown; it excludes the regeneration heater and blowers. It does not guarantee resin throughput, achieved moisture, dew point or drying time. Select against the actual resin grade and its supplier’s drying recommendations.

Keep the material route visible

Show the feed source, dryer position, receiving hopper and transfer route. Specify whether your inquiry includes conveying equipment or only the drying unit.

A RDM hopper dryer is another drying arrangement to review against the same resin requirements. The resin drying guide explains how to assemble the material, demand and layout details before requesting a quotation.

Drying, dehumidification and conveying scope

The RDC combined arrangement incorporates dehumidification, drying and material conveying. Published material describes a conveying package with an additional conveying stage as an option. Show the feed source, drying hopper and receiving machine so the quotation identifies the supplied route and optional components. The cabinet-dryer RCD designation is a separate equipment identity.

Questions about this equipment

Is a dew-point meter included as standard?

The published RDC range lists the dew-point meter as an optional component for monitoring the drying air. A stated dew-point value does not establish that the measuring instrument is included.
