Four-station pellet loader

Map each receiving point

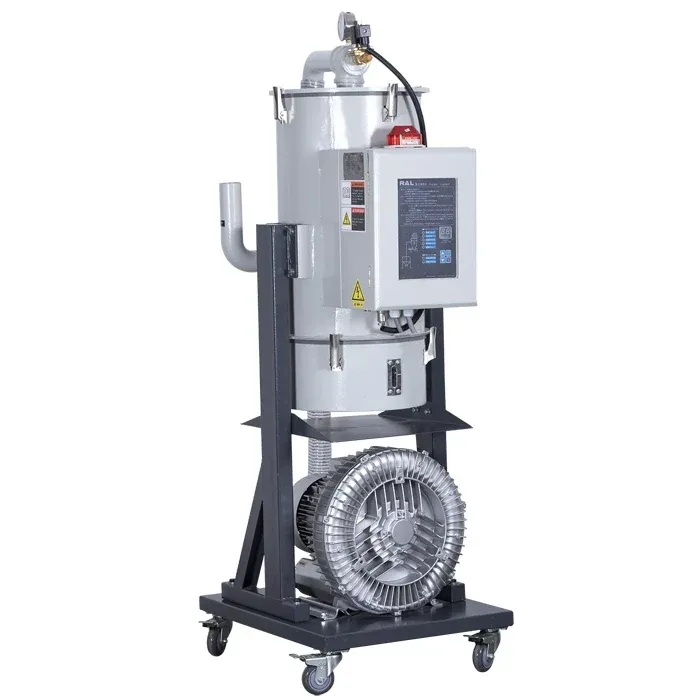

The RAL-703K4 is described in the catalogue as a pellet-loading arrangement for up to four stations. A main vacuum unit connects to separate receiving hoppers in this arrangement. Start with a drawing of the material source and each receiving hopper. Give the route and material demand at every destination.

A station count does not describe the combined conveying duty. Include which machines operate at the same time and whether they use the same material. The proposed configuration needs to account for that operating pattern.

Separate station layout from capacity

Provide horizontal distance, vertical lift and the hopper connection for each route. Identify any existing pipes, receivers and controls that are intended to remain in use.

The proposed RAL-703K4 supply should identify the motor, receivers and controls for the stated materials and routes. Keep those components and operating conditions together when comparing quotations.

Where fewer destinations are needed

For a single receiving hopper, review the RAL-303 loader. Choose the arrangement from the actual destinations and their consumption, rather than from the station count alone.

Describe the stations in the inquiry form and send a layout by email. Identify any storage or central conveying equipment separately in the requested supply.
