View details for Belt conveyor for plastic granulator feedingRAL-303
Automatic transfer of plastic pellets from a feed source to a receiving hopper.

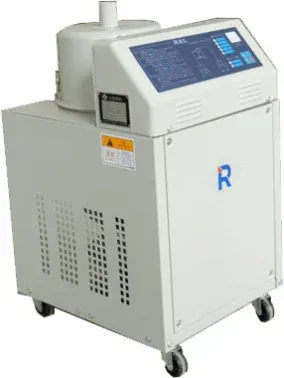

The RAL-303 transfers material from a feed source to a receiving hopper. Identify the pellets being handled and show where they start and where they need to arrive.
Record the horizontal route and vertical lift separately, including the proposed hose or pipe route. A transfer-distance figure by itself does not describe the installation. For layout choices, see the vacuum loader selection guide.
Include the hopper or equipment connection and the material demand at that point. If the loader feeds a hopper dryer, show the hopper position and how the dryer connects to the processing machine.
Photographs of the feed source and receiving hopper, or a simple line drawing, can make an inquiry easier to review than a distance alone.
Reference data from RHONG’s published catalogue for the named variants below. Confirm the current specification and options in your quotation.
| Model | Motor rating (HP) | Motor phases | Conveying pipe inside diameter (mm) |
|---|---|---|---|
| RAL-303 | 2 | 3 | 38 |
The motor rating retains the catalogue unit HP and is not converted to kW. The diameter is the conveying pipe’s inside diameter, not the hopper outlet. Distance, material and route are required to select the configuration.
This page describes pellet transfer. If your material is powder, flakes or an irregular blend, provide a sample description rather than assuming the same conveying arrangement applies.
When you request a quotation, include the material, hourly demand, route, receiving arrangement and local electrical supply. The proposed model and conveying configuration should relate to those conditions.
The unsuffixed RAL-503 is listed alongside RAL-303 as another separate induction-motor loader reference. Its hopper and motor configuration must be identified separately. The RAL-303 reference values above do not apply to RAL-503 or to K and KU variants.
Choose a pellet loader by reviewing the installation layout, receiving points, material route and operating demand together.
Start with the material grade and its supplier's drying instructions. Then match the drying arrangement to material demand and the route to the processing machine.
