RCM-A

Air-cooled industrial chiller

Process cooling for plastics production, selected against the cooling duty and installation conditions.

Request a quote WhatsApp

Ask for the specification sheet for your configuration.

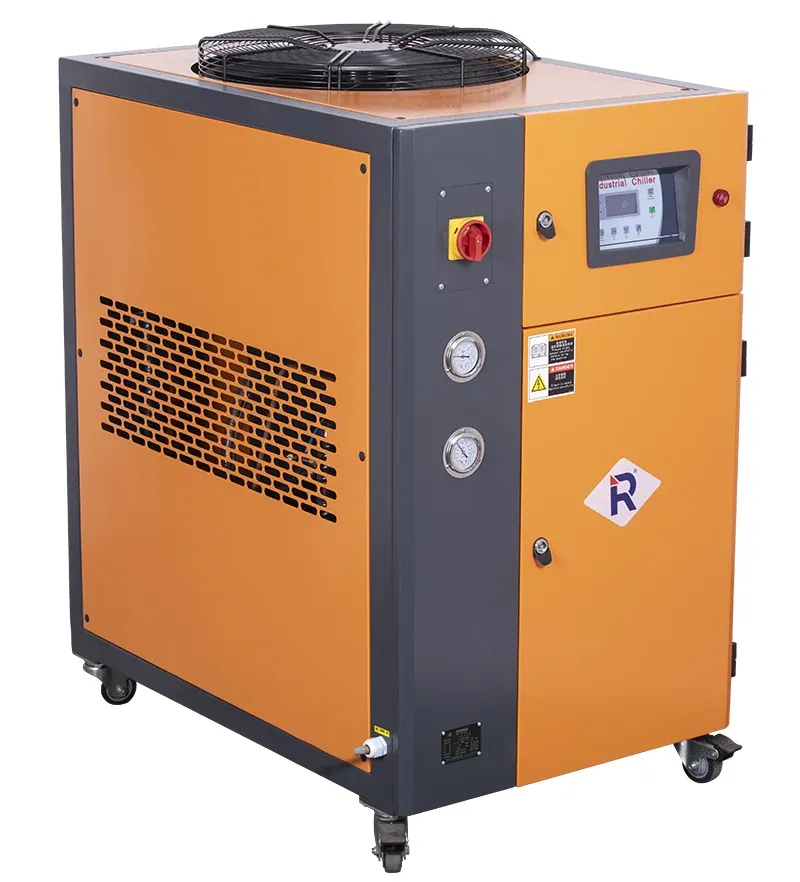

RCM-A air-cooled chiller

Applications

  • Injection molding process cooling
  • Extrusion equipment cooling
  • Auxiliary equipment cooling

Define the duty at the equipment

The RCM-A is an air-cooled chiller for process cooling in plastics production. Selection starts with the equipment to be cooled and the conditions its process requires.

Provide the required water temperature, flow requirement and cooling load if these are known. If you do not have a load calculation, send the equipment details and existing cooling arrangement so the duty can be reviewed.

The installation affects the selection

Include the surrounding temperature, available space, pipe route and electrical supply. An air-cooled unit needs its installation environment to be considered when reviewing the proposed model. Ask for the proposed model's cooling capacity at the required supply-water temperature and process-water flow, with the condenser-inlet air temperature stated. For a water-cooled alternative, review the RCM-W range and its condenser-water requirements.

The connection details and scope of pumps, tanks or other circuit components belong in the proposed configuration. List any equipment you already have so the quotation can identify the required supply. To compare the installation requirements, see the air- and water-cooled chiller guide.

Catalogue model data

Reference data from RHONG’s published catalogue for the named variants below. Confirm the current specification and options in your quotation.

The catalogue cooling capacities for the listed models are rated at a chilled-water inlet temperature of 12°C, outlet temperature of 7°C and ambient air temperature of 30°C.

RCM-A catalogue reference
ModelWater tank capacity (L)Cooling capacity (kW)
RCM-3A567.5
RCM-5A6512.5
RCM-8A11318
RCM-10A12923
RCM-25A35058

Tank capacity is stored water volume, not cooling capacity or flow rate. Identify the refrigerant, pump, evaporator and electrical specification of the supplied unit in the quotation.

Chiller or mold temperature controller?

The two machines address different duties. A chiller provides process cooling, while the RTC-W mold temperature controller manages the circulating temperature for a mold or process. A line may need both; describe the role and operating conditions of each.

Include your cooling requirements and site layout in an equipment inquiry to discuss an RCM-A configuration.

Keep the scroll and screw ranges separate

RCM-A describes the scroll air-cooled range. A central screw-compressor installation has a different equipment and model scope. Select from the required process-water conditions, factory load and condenser-air conditions; the existing catalogue examples apply only to the named models.

Plate-exchanger configuration

A published source identifies RCM-AX as a plate-heat-exchanger design alongside RCM-A. Request the complete designation and exchanger arrangement in the quotation. The available source does not establish that every RCM-A parameter also applies to RCM-AX.

External-tank arrangement

The published external-tank design describes a scroll compressor and a separate larger water tank. Show the tank location, pump connections and return-water conditions when requesting this arrangement. External-tank positioning is a configuration decision; it does not by itself identify an RCM-AX model.
