RTC-W

Water-type mold temperature controller

Water-circulating temperature control for molds and process equipment.

Request a quote WhatsApp

Ask for the specification sheet for your configuration.

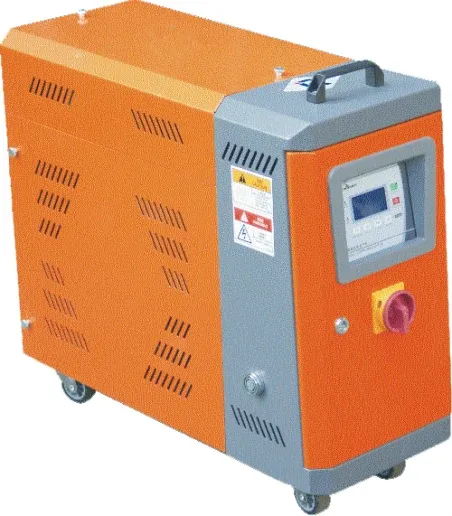

RTC-W mold temperature controller

Applications

  • Injection mold temperature control
  • Water-circulating process temperature control

Specify the mold circuit

The RTC-W is a water-type mold temperature controller. It circulates water through a connected mold or process circuit to meet the temperature requirement of that application.

Identify the mold or equipment, required operating temperature and circuit connection details. Include any existing controller information when replacing a unit. Water-type and oil-type equipment have different operating requirements; specifications for one medium should not be applied to the other.

Temperature and circulation belong in the same inquiry

State the flow or circuit information available from the mold or process equipment, along with operating hours and electrical supply. Show where the controller will stand and how it connects to the mold and the required utilities.

The exact working-temperature range and circuit configuration should be stated for the proposed model. The series name alone is not a temperature specification.

Catalogue model data

Reference data from RHONG’s published catalogue for the named variants below. Confirm the current specification and options in your quotation.

RTC-W catalogue reference
ModelHeater power (kW)Pump power (kW)
RTC-630W60.37
RTC-950W90.75
RTC-1290W121.5

Only single-unit water-medium configurations are included, not oil-type values or totals for -D dual units. Installed heater and pump powers are separate ratings; their sum is not cooling capacity or actual energy consumption.

Where a chiller fits

If the installation also needs separate process cooling, review the RCM-A air-cooled chiller for that duty. Describe the required temperatures and connections for both units so their roles are clear.

Send the mold details and operating conditions through the equipment inquiry form.

Keep the water circuit and medium explicit

The RTC-W page describes water as the mold-circulation medium. Identify each mold connection and its required working condition. Oil-medium and dual-circuit arrangements have their own model scope; their temperatures, heater ratings and pump values should not be transferred to the water-type examples here.

For a dual-circuit arrangement, compare the RTC-D oil controller and the RTC-WD water controller using the required medium and working conditions for each circuit.
