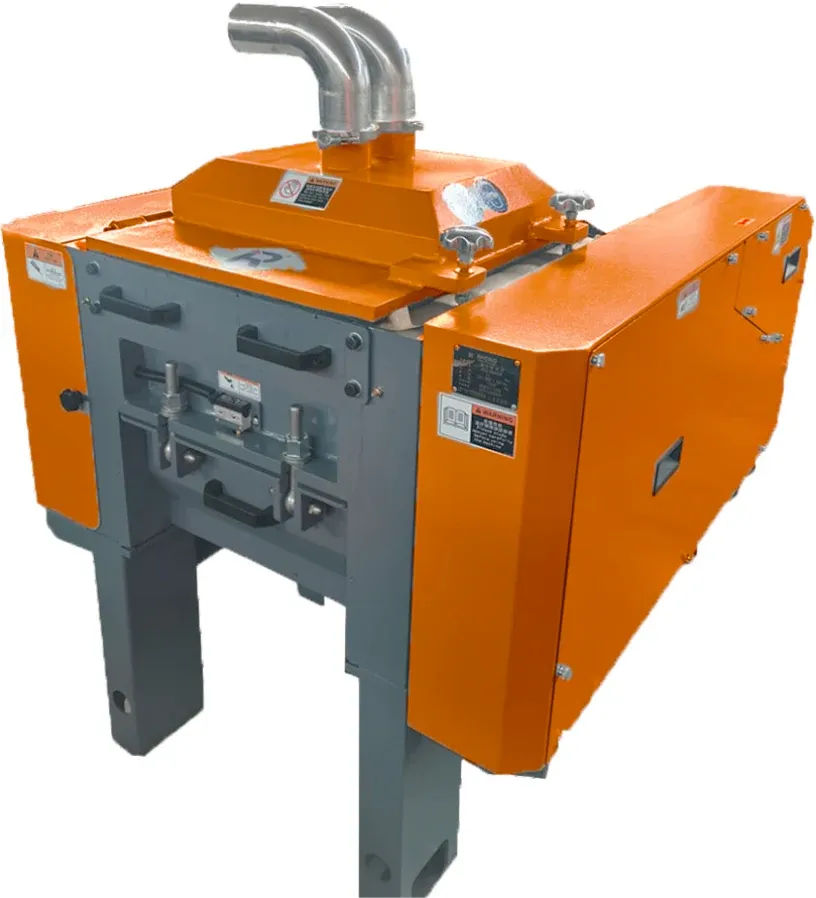

Air-suction film edge-trim granulator

Collect the strip where it is produced

The RG-3640X and RG-4060X source descriptions use air suction to bring continuous edge strips from a production line into the granulator. The linked catalogue identifies the same application for cast-film, calendering and extrusion operations. Cut material can be conveyed toward the extrusion return route.

This feed arrangement is suited to review around individual edge strips. A roll-fed skeleton or a batch of collected bags has a different presentation. Show each strip's width and thickness, the resin and the maximum line speed, together with the distance from the cutting point to the granulator.

Lay out the pneumatic route

The inlet pipes, material collection and return connection should be specified as one route. Mark changes of direction and the receiving equipment on a simple drawing. Include how strips will be introduced during start-up and what happens when the extrusion line stops.

The regrind proportion and suitability for reuse remain part of the production specification. No full-recovery or unchanged-product-properties guarantee is made from the catalogue description.

Choose the cutter and receiving process together

Review screen choice and blade access against the soft film being cut. Check for contamination or sticky incoming material that needs a different handling plan. Include the receiving extruder and any existing material conveying equipment in the inquiry so the return arrangement can be checked.

Source: RHONG published catalogue.
