RSS series

Single-shaft plastic shredder

Initial size reduction of plastic waste before the next recycling or granulation stage.

Request a quote WhatsApp

Ask for the specification sheet for your configuration.

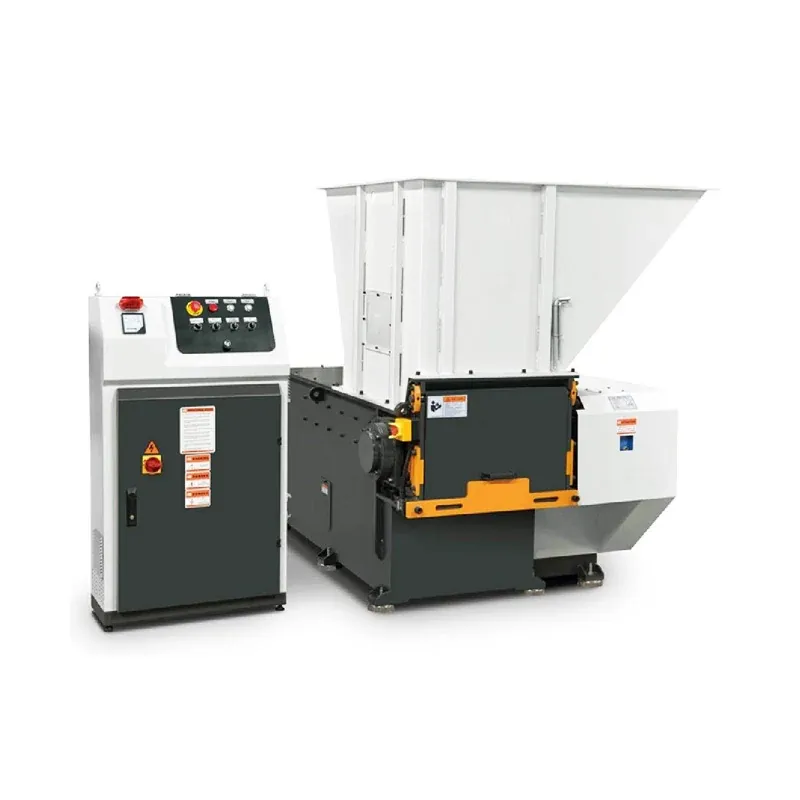

Single shaft plastic shredder

Applications

  • Initial plastic waste size reduction
  • Pre-shredding before granulation
  • Production waste preparation

Plan the first stage of size reduction

The RSS series is a single-shaft shredder for reducing incoming plastic waste before further processing. Describe the material as it arrives: polymer, shape, largest piece size and whether it contains foreign matter.

The next process defines what the shredder must deliver. If the waste will pass to a granulator, review the two stages together instead of selecting each from a separate capacity headline.

How shredding fits with granulation

A shredder carries out the initial reduction task. Further cutting in an RG granulator may be needed for the intended regrind or downstream process. Shredder output should not be assumed to have the same size and form as final granulator output.

Show how material transfers between stages and where it is collected. Include the available space and feeding method so the proposed equipment can be reviewed against the whole route.

What the sizing screen controls

In the RSS cutting arrangement, the low-speed, high-torque rotor cuts material fed towards it by the hydraulic pusher. Pieces small enough to pass through the sizing screen can leave the cutting area. The screen helps control discharge size; it does not make every piece the same dimensions. Compare the resulting pieces with the next process's input requirement. Material may be suitable to feed that process directly, or it may need further reduction in a granulator.

Information for an RSS inquiry

  • Photographs of representative waste and the largest incoming pieces.
  • Polymer type, piece dimensions and known foreign material.
  • Hourly demand, operating schedule and how the waste will be fed.
  • The next machine or process, and its input requirement.

Send these details with your equipment inquiry. They help define the required first-stage output and the scope of any following granulation equipment.

Rotor, pusher and separate granulation

The source range describes a low-speed, high-torque single rotor with a hydraulic pusher and sizing screen. The pusher presentation and rotor configuration need to suit the incoming lumps. The RG-3280SS source specifically describes a swing-type hydraulic pusher; other source names are not treated as identical machines.

RSS and RG-SS names appear in the public material, including RG-2240SSC, RG-2260SSC and RG-48120SS. These original names identify catalogue references for application review. Their similar numbering does not establish equivalent dimensions, motors or output.

A standalone shredder transfers its output to a later process. An SSG shredder-granulator combination contains the following cutting stage in the same arrangement and requires a separate installation specification.

Square cutter inserts

The published catalogue describes square rotor cutters with a central groove for RG-22SS/32SS/48SS. Each cutter has 4 usable corners. When ordering replacements, match the cutters to the named machine and its blade drawing and dimensions; the square shape alone does not establish interchangeability.
