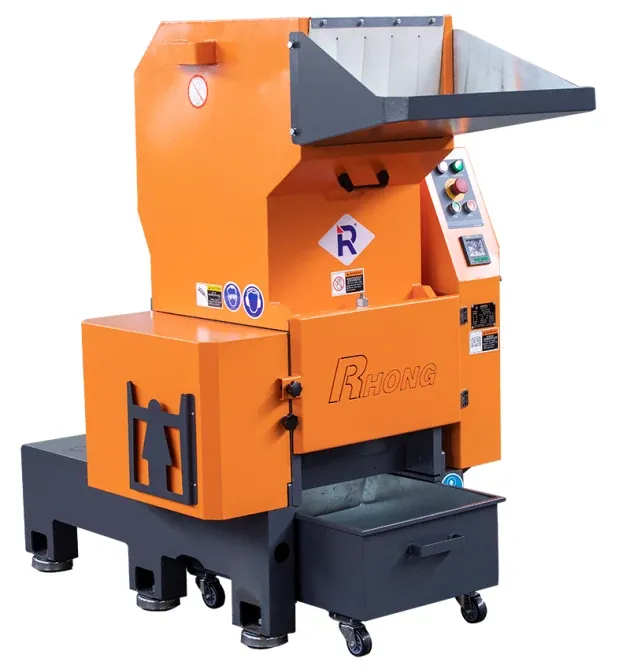

RG-26E
General-purpose plastic granulator
Cut sprues, runners and production offcuts into regrind for a planned recovery process.

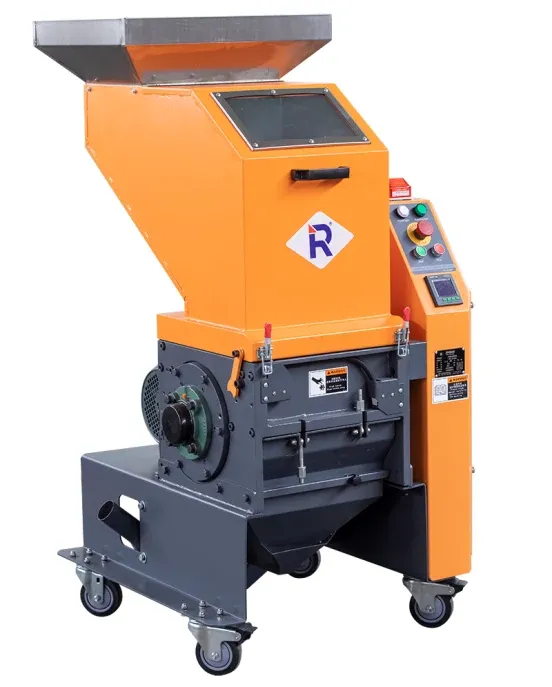

View details for RG-26E General-purpose plastic granulatorRG-16R / RG-21R
Screened beside-the-press cutting of sprues and small rejects, with collection and return configurations chosen for the molding process.
RG-16R and RG-21R are medium-speed granulators for sprues and small plastic rejects beside molding machines. The published construction uses paddle blades and a screen below the cutting area. Screen selection should be reviewed against the required regrind and the actual material.
Photographs should show a complete sprue and any attached rejects. Include the polymer and whether the waste arrives warm or at room temperature. Flexible runners and thick junctions should be identified rather than hidden within a general description of injection scrap.
The catalogue describes blower collection, a manual collection box and a proportional-valve return option. Some RY descriptions use a different receiving box arrangement. Record the chosen arrangement in the machine specification so a collection accessory is not mistaken for a change in the cutting principle.
The robot or conveyor feed point and the outlet route should be shown together. For immediate return, identify the molding machine's receiving hopper and the material-handling equipment already installed.
RJ source pages describe a motor control option. Any energy comparison requires the operating material and measured duty; no saving percentage is applied to the R series here. Plan safe blade and screen access for cleaning between batches, then send the required hourly quantity and regrind use with the equipment inquiry.
The published catalogue lists the following named R models. These are reference configurations, not specifications for every RG-16R or RG-21R variant.
| Model | Motor power (kW) | Rotor speed (rpm) | Catalogue screen aperture (mm) | Cutting chamber (mm) |
|---|---|---|---|---|
| RG-1619R | 1.5 | 375 | 6 | 230 × 190 |
| RG-1626R | 2.2 | 375 | 6 | 230 × 260 |
| RG-2136R | 2.2/6P | 290 | 6 | 315 × 360 |
| RG-2142R | 3.0/6P | 290 | 6 | 315 × 420 |
The catalogue electrical reference is 3-phase, 380 V, 50 Hz; the supply for the quoted machine must match your site. The 6P notation identifies a six-pole motor. Chamber dimensions are not feed-opening dimensions, and a 6 mm screen does not guarantee every particle’s size.
Keep RJ and RY control or collection configurations separate when comparing quotations. The standard R values above do not establish their motor ratings, output or energy savings.
The published catalogue lists a multi-rib belt drive for RG-16R/21R. This differs from the direct gear drive described for the RG-18/20/23 low-speed granulators. When requesting drive parts, identify the machine model and the drive type so the belt-driven and gear-driven arrangements are not confused.
Compare cleaning access across the actual material contact path, then record each stage of a colour or material changeover through quality release.
